image sensor:1030/7959
High definition, 420TV LINE
Waterproof, 170 degree rotation
Parking line

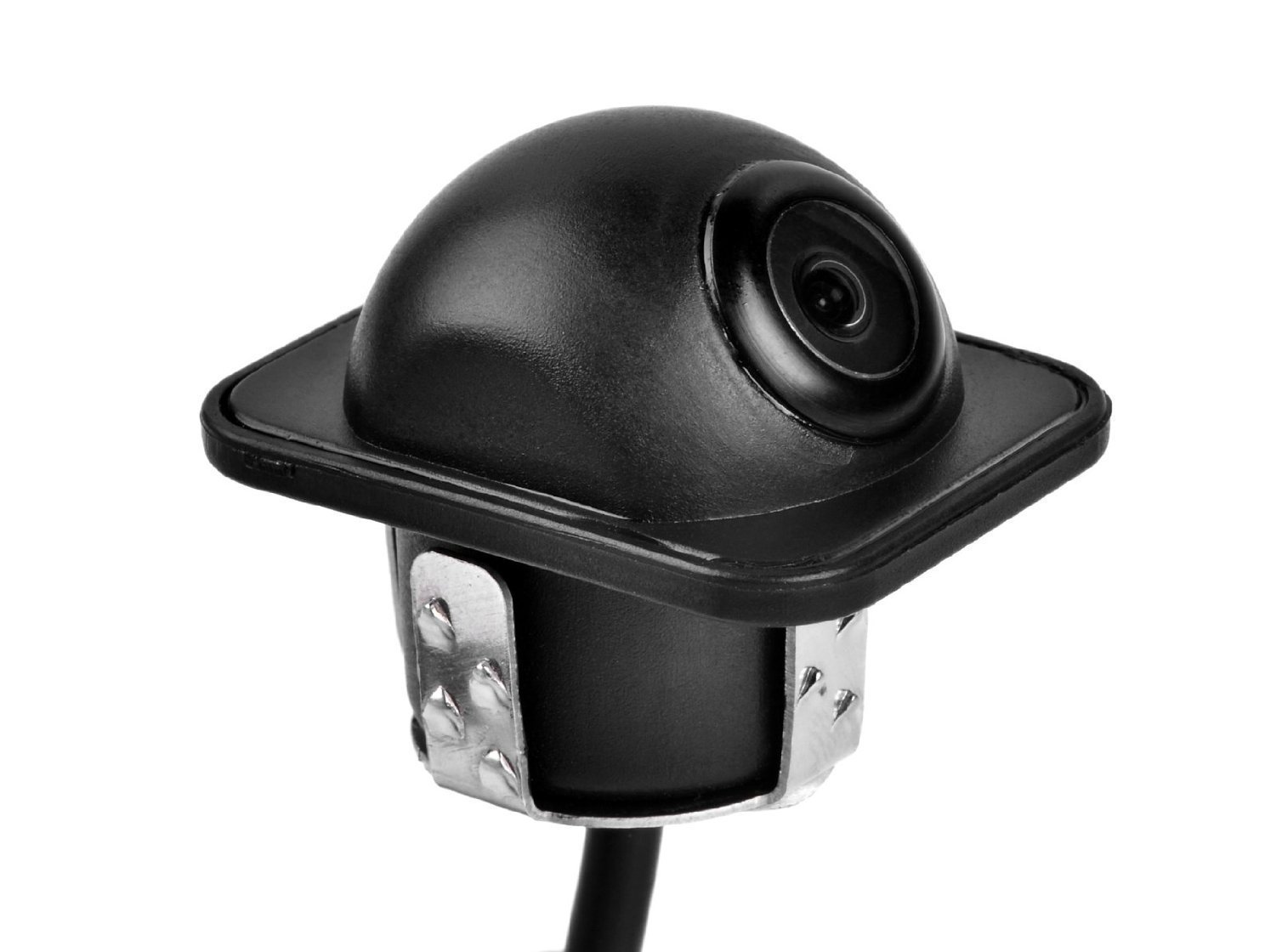

Embeded car rear view camera(XY-1695)

front/rear view switchable optional

reverse guide line optional

Image Device 1/4” COLOR CMOS
TV System NTSC
waterproof rate Ip67
Effective Pixels 628x582 pixels / 656×492 pixels
Resolution 420TV lines
Minimum Illumination 1.0Lux / F1.2
Pin Lens f=2.4mm / F = 2.0
Lens Angle 170°
Vertical Sync. Frequency 50Hz / 60Hz
Video Output 1.0vp-p, 75Ohm
Power Supply DC12V
Current Consumption ≤120mA
Operating Temperature -20°C~70°C , RH95% MAX
Storage Temperature -40°C~85°C , RH95% MAX
Dimension Φ20x35mm
