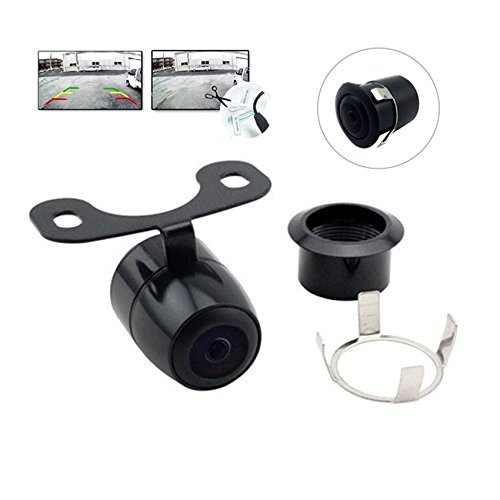

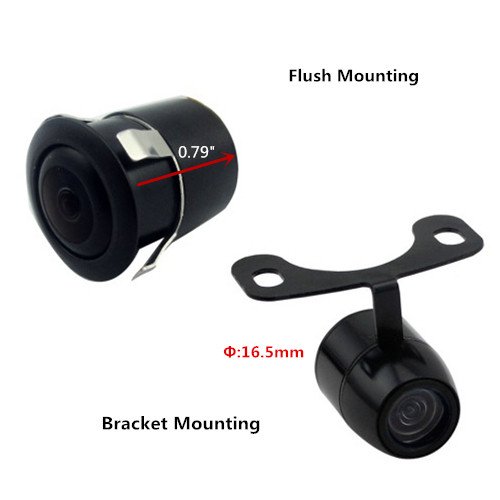

16.5MM TWO IN ONE CAR REARVIEW CAMERA

Image sensor :

OV7959/PC7070

Signal system

NTSC/PAL

Effective pixel:

PAL: 648(H)× 488(V) NTSC: 648(H)× 488(V)

Effective Pixels

648X488

Definition:

420 TV Lines

Mini illumination

0.05Lux

Lens angle

120degrees

Sensitivity

3.0V/Lux-sec@5600K

Horizontal view angle

90degrees and 120 degrees is optional

Video output

RCA connector,1.0vp-p,75ohm

Current consumption

the maximum :95mA

Power

DC12V

Night vision distance

0-5m

Operating Temperature(Deg C)

-30-+65RH95%Max)

Storage Temperature(Deg C

-40-+80(RH95% Max)

AGC

to be automatic

White balance

to be automatic

The backlight compensation

to be automatic

Wide-Angle, Waterproof, Anti-shake and Anti-mist.
