Security System Features:

1. Designed for Truck/Trailers/Campers/Semi truck/hitch hotel/box truck/Motorhome/cam/ Caravan/Boat Yacht /Vehicle use 12 & 24 Volt Systems

2. Used for Parking, Reversing, Truck Docking, Driving Safety

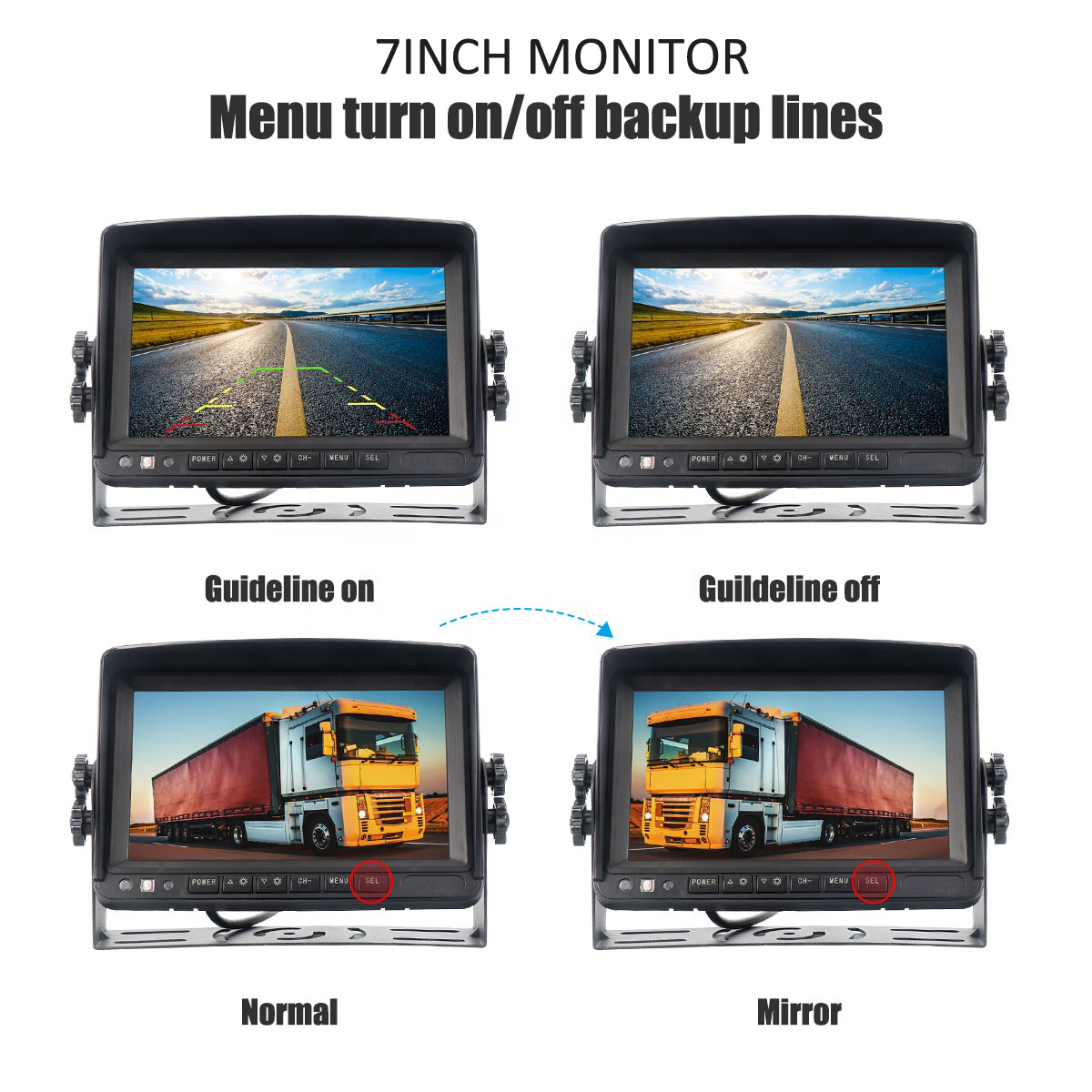

3. Rear view pictures can be overturned by the buttons of Up / Down / Left / Right

4. Rear view Camera :  IP 68 Rating Waterproof, 170 Degree Wide Viewing, No guide line, won't affect image.

5. The camera has a 752x582 pixels resolution that will give you a perfect and detailed picture.

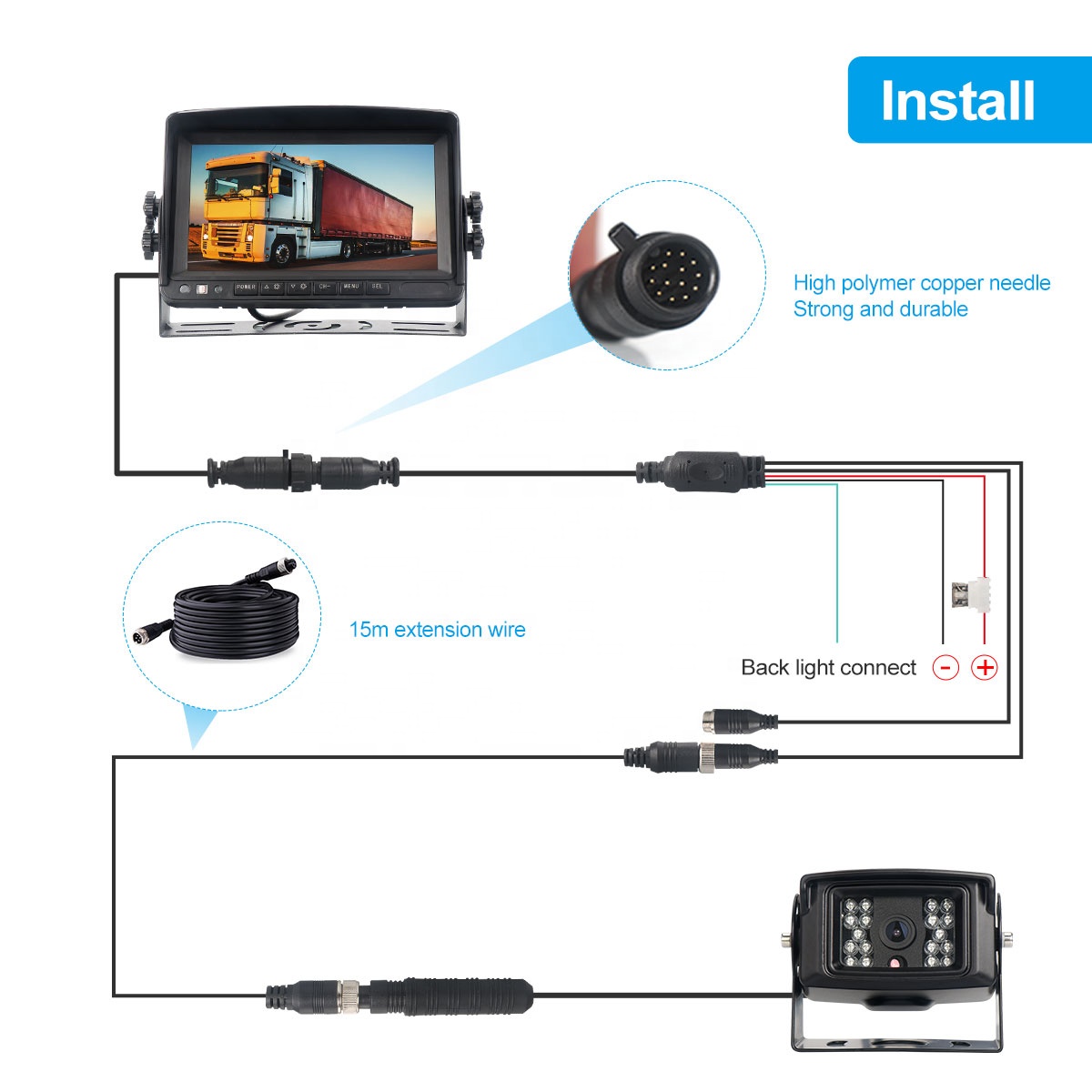

6. Installation is not difficult. Instructions are included.

7"TFT LCD Monitor Specification:

Screen Size

7.28inch×1.18inch×4.92inch

Display Component

Color TFT LCD

Resolution

800*480

TV System

PAL/NTSC auto

Screen ratio

16:9/4:3 adjustable

Housing Material

ABS

Rear-view

AV2 AUTO reverse when trigger activated

View Angle

up / down / left / right

Operate mode

key operation & remote control

Operating voltage

DC12V-24V

Power consumption

about 6W

Rear view Camera Specification:

Camera Size

2.87inch×1.73inch×3.54inch

Image Sensor

CCD

Effective Pixels

752*582 pixels

Resolution

480 TV lines

Lens Viewing Angle

170 Degrees

Waterproof IP Rate

IP68

Operating voltage

12V-24V

IR LEDs

18PC

Pin Lens

f=2.1mm / F=2.0

S/N Radio

better than 48db

Work Temp

-20℃~+60℃

Package Included:

1 x Woolkom brand 7 inch Monitor

1x Back up Camera

1 x Monitor Data Cable

1x 10M Extension Cable

1 x Bracket

1 x User Manual

1 x Remote Controller
