- WOCX77-607T2-225CS (7 inch)
- ¡¾Brief ¡¿£º
Security System Features:
1. Designed for Truck/Trailers/Campers/Semi truck/hitch hotel/box truck/Motorhome/cam/ Caravan/Boat Yacht /Vehicle use 12 & 24 Volt Systems
2. Used for Parking, Reversing, Truck Docking, Driving Safety
3. Rear view pictures can be overturned by the buttons of Up / Down / Left / Right

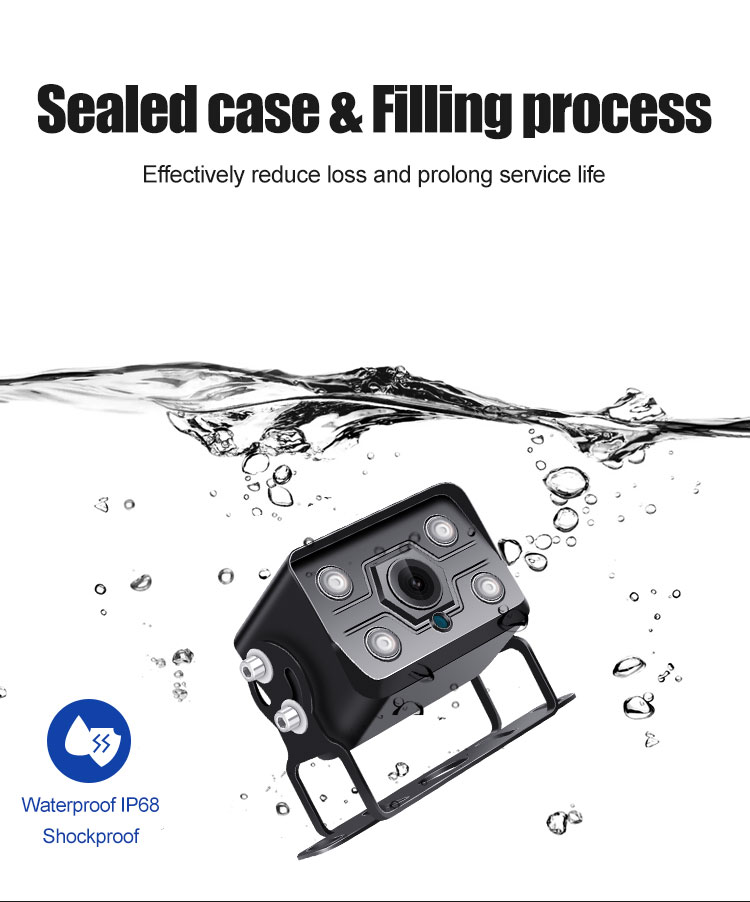

4. Rear view Camera : IP 68 Rating Waterproof, 170 Degree Wide Viewing, No guide line, won't affect image.
5. The camera has a 752x582 pixels resolution that will give you a perfect and detailed picture.
6. Installation is not difficult. Instructions are included.
7 inch Monitor Built-in DVR Recorder with Quad Split Screen:

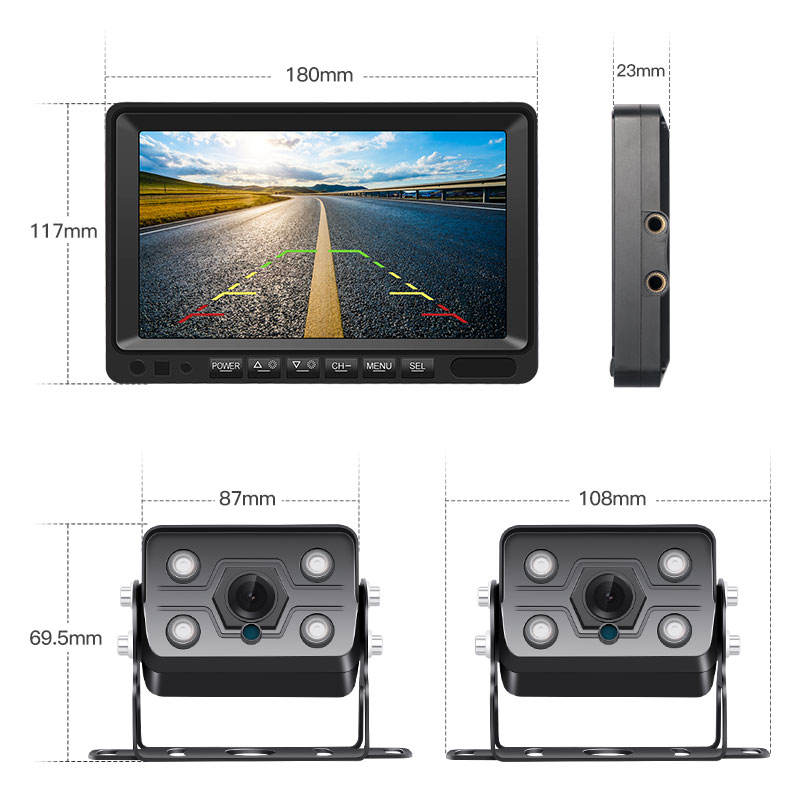

Screen Size
7.28inch¡Á1.18inch¡Á4.92inch
Display Component
Color TFT LCD
Resolution
800*480
TV System
PAL/NTSC auto
Screen ratio
16:9/4:3 adjustable
Housing Material
ABS
Rear-view
AV2 AUTO reverse when trigger activated
View Angle
up / down / left / right
Operate mode
key operation & remote control
Operating voltage
DC12V-24V
Power consumption
about 6W
Rear view Camera Specification:
Camera Size
2.87inch¡Á1.73inch¡Á3.54inch
Image Sensor
CCD
Effective Pixels
752*582 pixels
Resolution
480 TV lines
Lens Viewing Angle
170 Degrees
Waterproof IP Rate
IP68
Operating voltage
12V-24V
IR LEDs
18PC
Pin Lens
f=2.1mm / F=2.0
S/N Radio
better than 48db
Work Temp
-20¡æ~+60¡æ

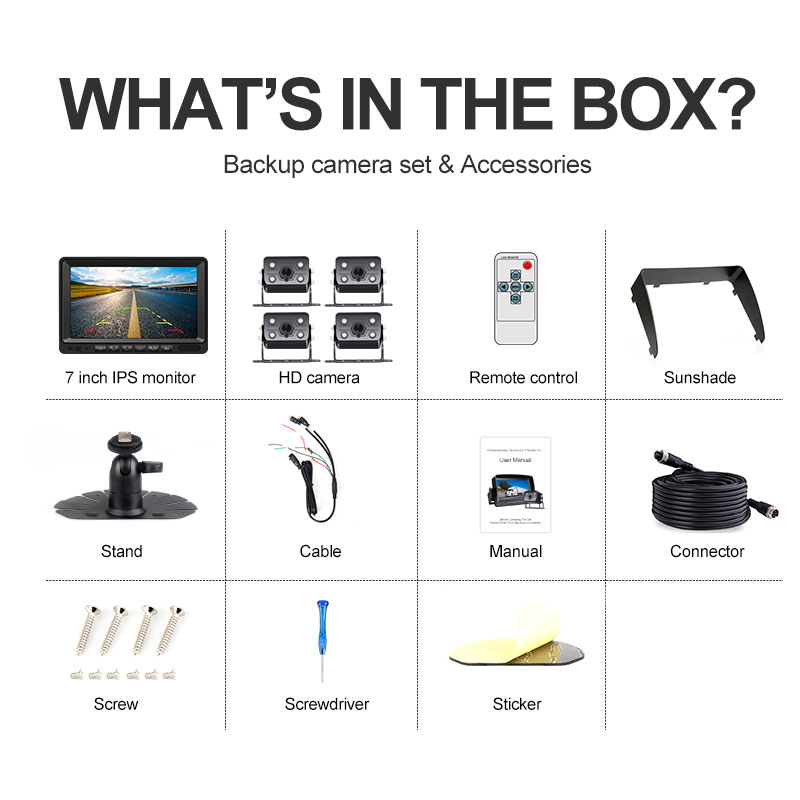

Package Included:
1 x Woolkom brand 7 inch Monitor
4x Back up Camera
1 x Monitor Data Cable
1x 10M Extension Cable
1 x Bracket
1 x User Manual
1 x Remote Controller
- ¡¾Series¡¿£ºWire Camera for Truck/RV
- Description
- 7 inch Monitor Built-in DVR Recorder with Quad Split Screen Camera system.
